Next Generation Scaffolding Iq System
Next-Generation Scaffolding with a floor height of 1,900 mm
Iq system’s work efficiency and safety are enhanced as it applies light-weight tubular.
New generation scaffolding for construction having floor height of 1,900mm has advantage in its easy installation.
- Preceding handrail with horizontal slide system is standard and easy to be installed.
- Lightweight, high-tensile steel tubular is used for the main post to realize weight reduction and compactness while maintaining strength.
- Compliance with the revised safety and health regulation.
Wide workspace with enhanced safety
Safe working environment is secured with the system of floor height of 1,900mm.
The worker can walk through without bending.
Light post is easy to be erected
The main post achieved weight reduction by 2kg compared with conventional wedge-type post (case of the same member for 3,800mm) according to light-weight high tensile strength steel pipe.
Speedy assembly and disassembly operations
As the handrail is inserted and attached from the side to the post flange, assembling and disassembling of the system is quick.
Height of preceding handrail over 1,000mm
Height of preceding handrail used in the system is over 1,000mm.
The worker feels to be secured with the handrail higher than that of H frame.

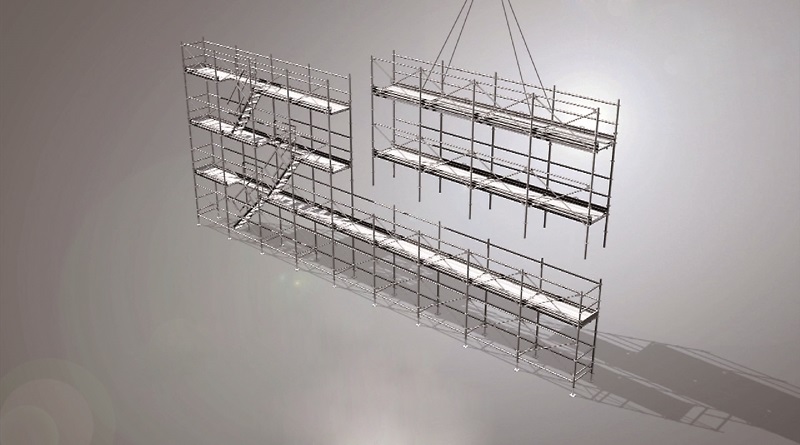

A block of assembled scaffolding system can be connected efficiently
At specific site, speedy assembling using crane is feasible as the system includes fall prevention in joint section of handrail and main post.

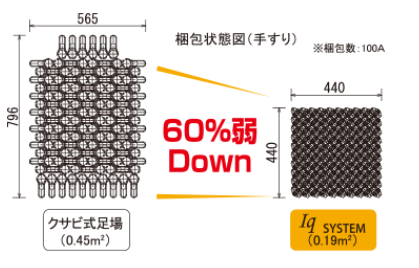

Compact packing of members
Size of packaging of members becomes smaller by 60%.
(Comparison of handrail of Iq system and that of wedge lock system for 100 pcs)

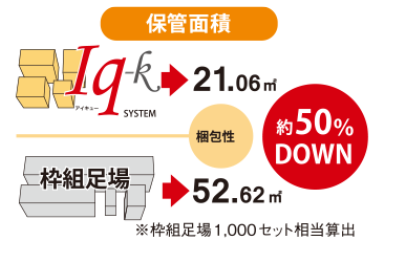

Efficient storage space
Storage space is decreased by 50%.
(Comparison of storage space of Iq system and that of H frame for 1,000 sets )
Efficient loading capacity by truck
Only two thirds of truck is necessary to carry the same amount of scaffolding.
(Comparison of number of trucks to carry Iq system versus that of H frame for the amount of 2000m2)
Advantage in enhanced safety, workability and compact package (Japanese)

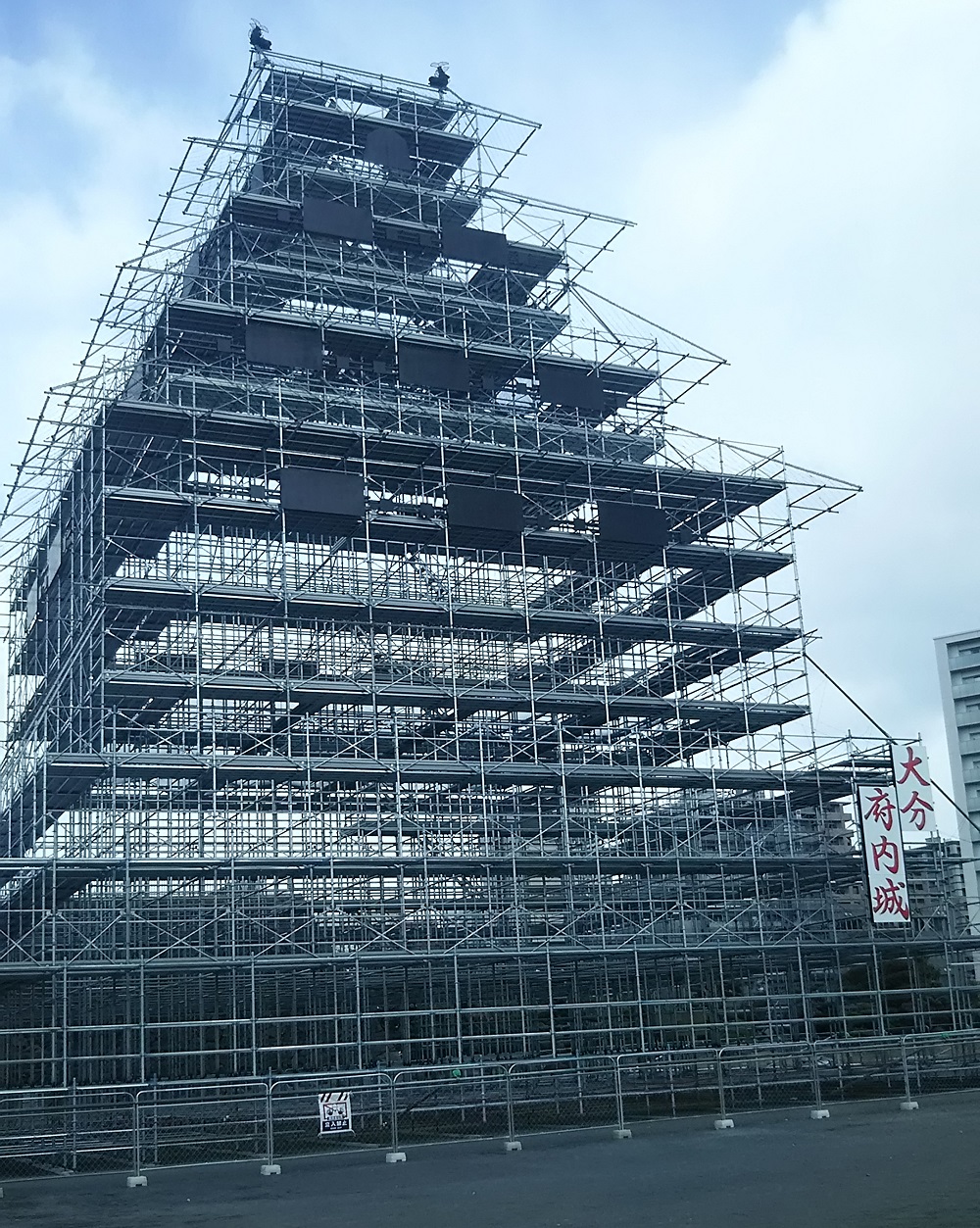

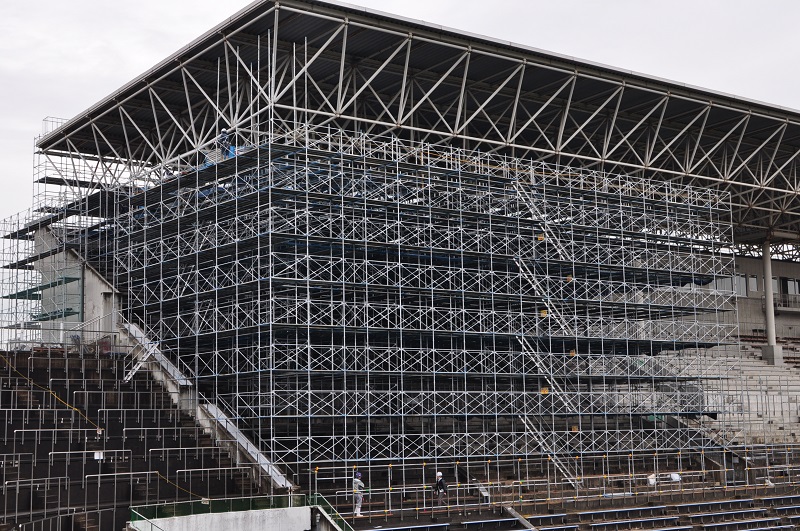

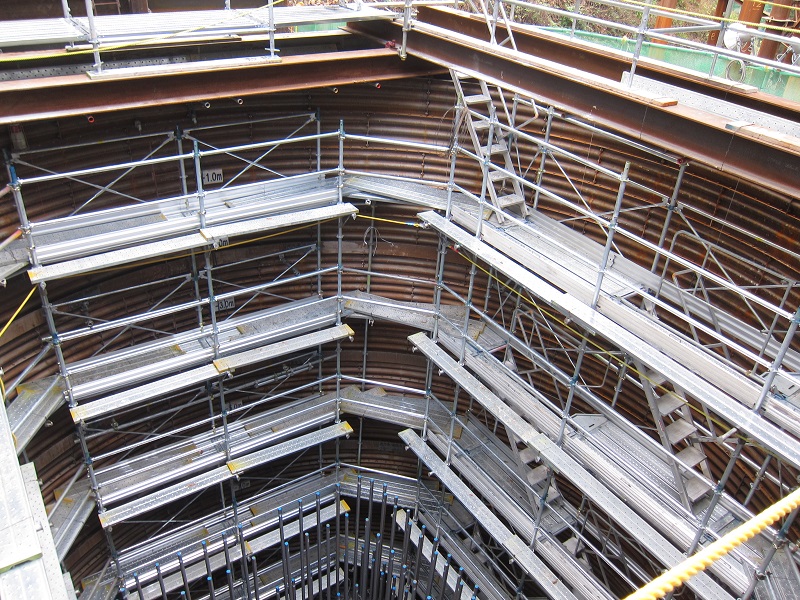

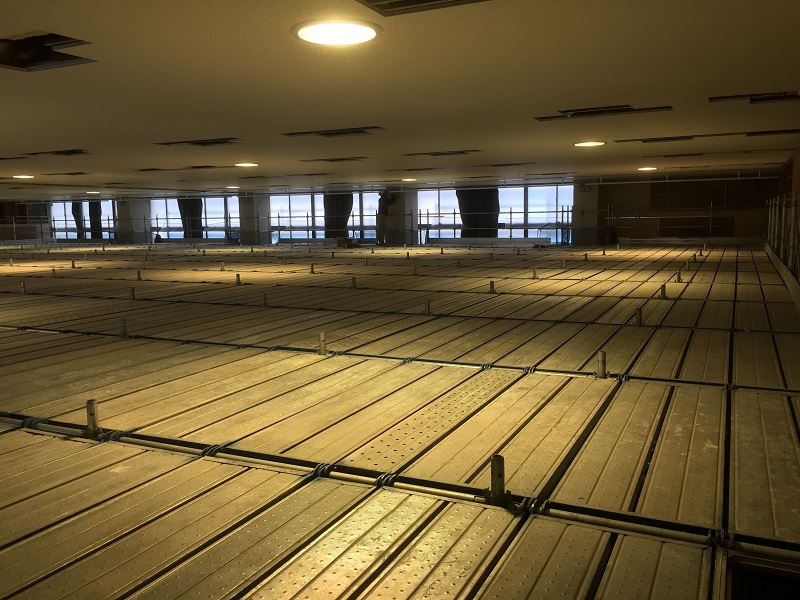

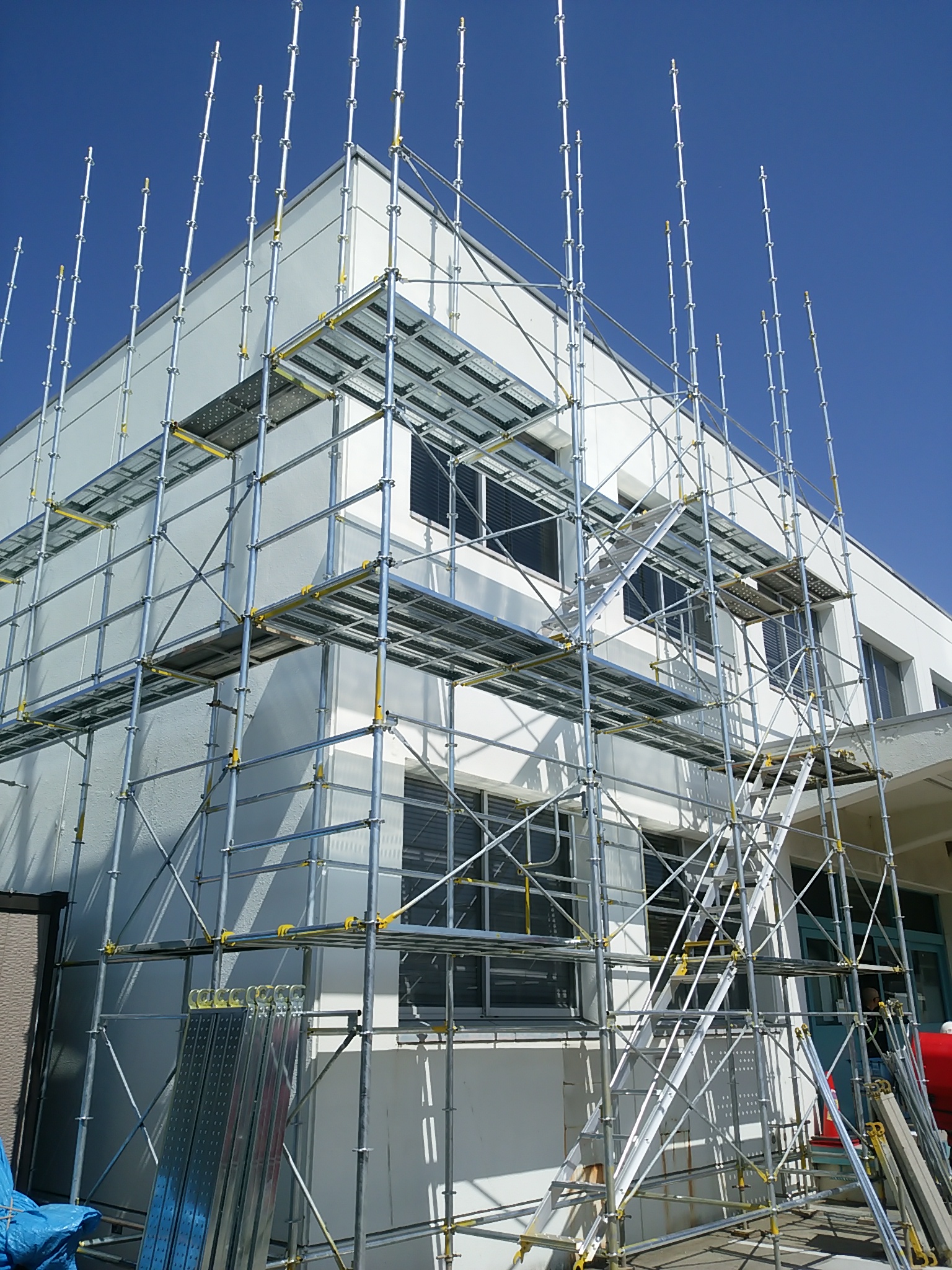

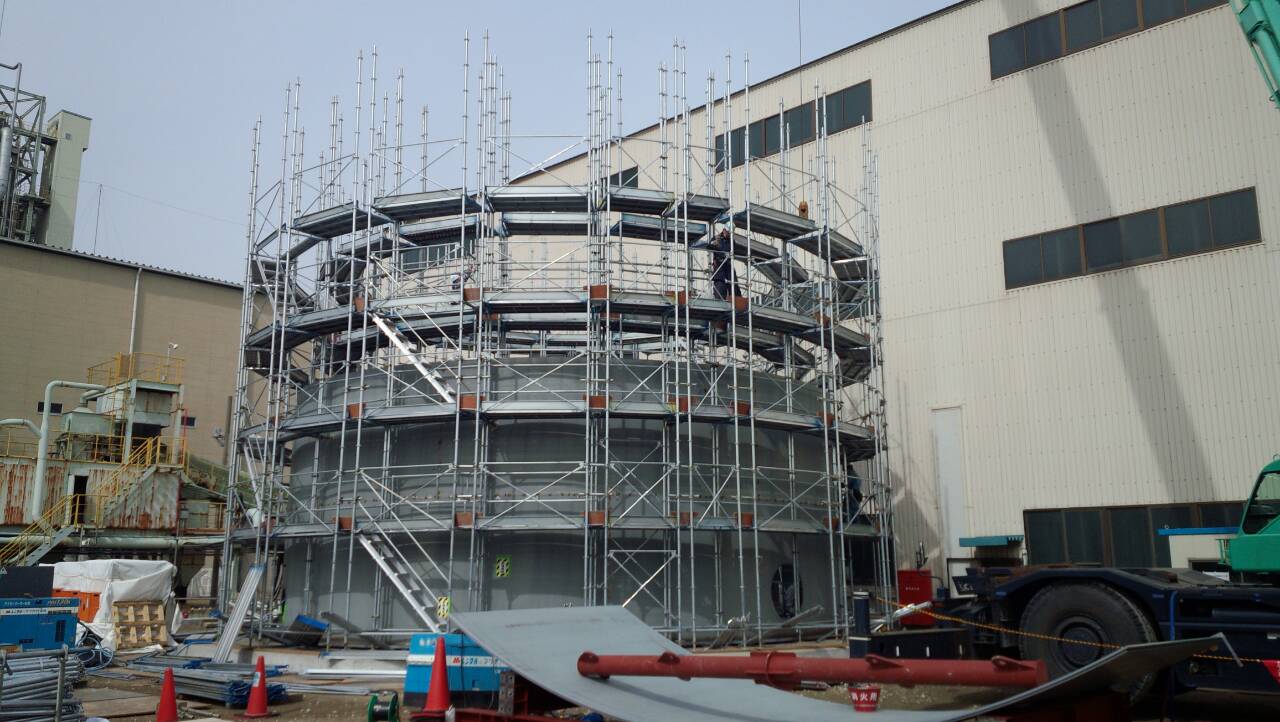

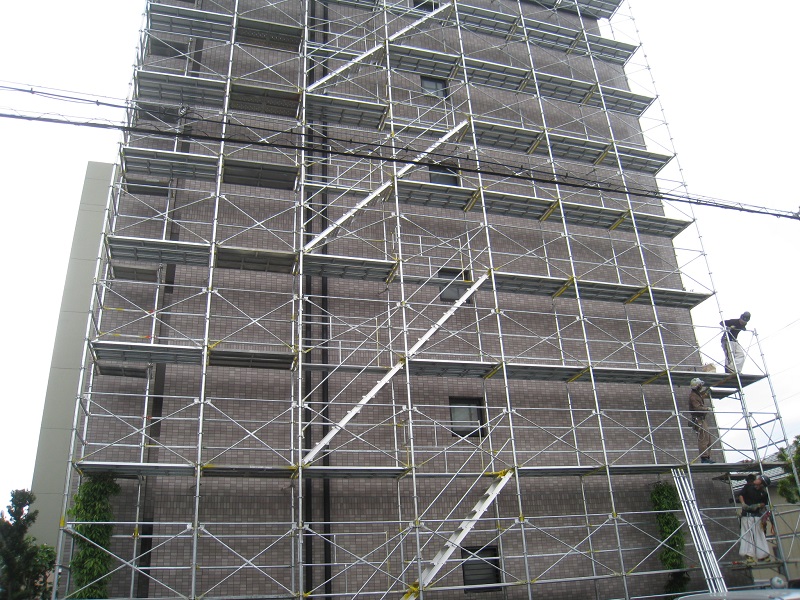

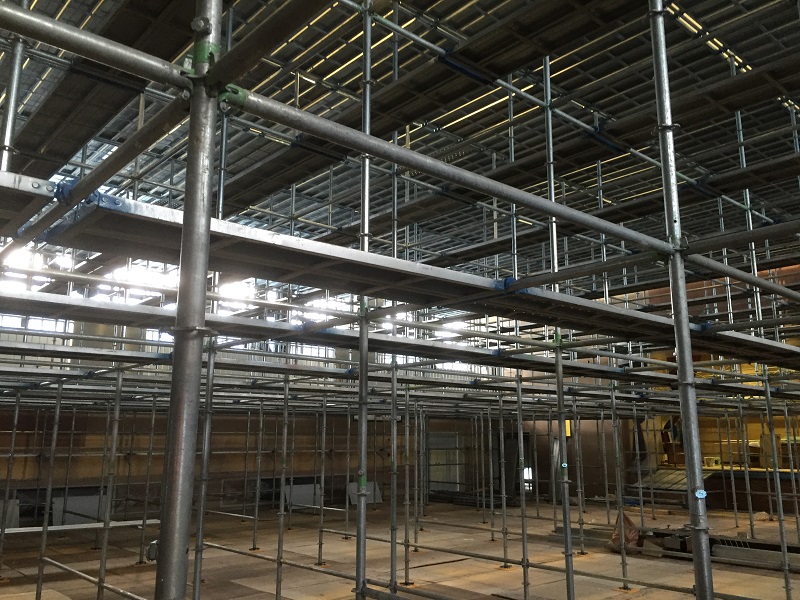

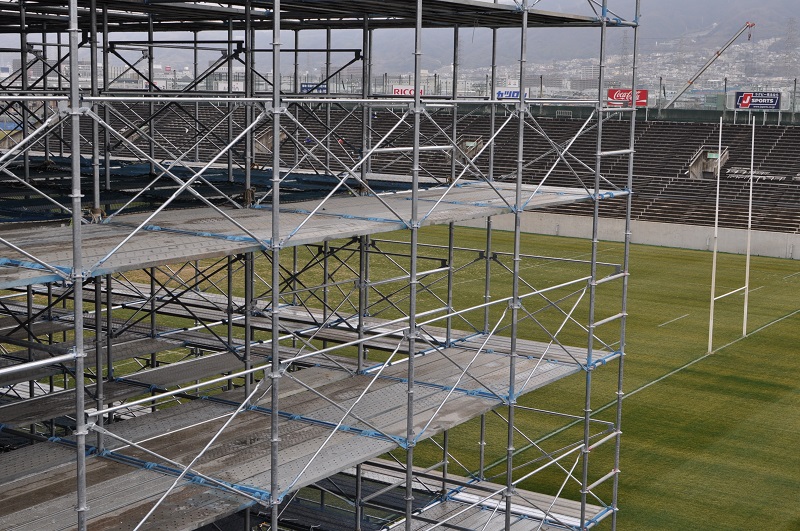

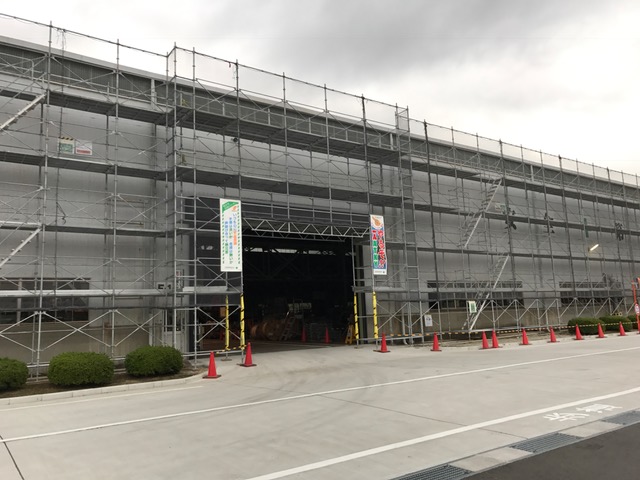

■ Products at sites
